6.4 SOTF IAT

2008 - 2010 Power Stroke 6.4L Switch Installation Guide

Tools needed for installation

• Flashlight
• Flathead Screwdriver
• Snips
• 5 FT of wire to fish the switch wires through the fire wall
• Zip Ties
• Electrical Tape
• 8mm 1/4 Socket
• 1/16 Drill Bit
• Unibit #1 or 3/8 Drill Bit
• 1/8 Drill Bit

Installing the Switch

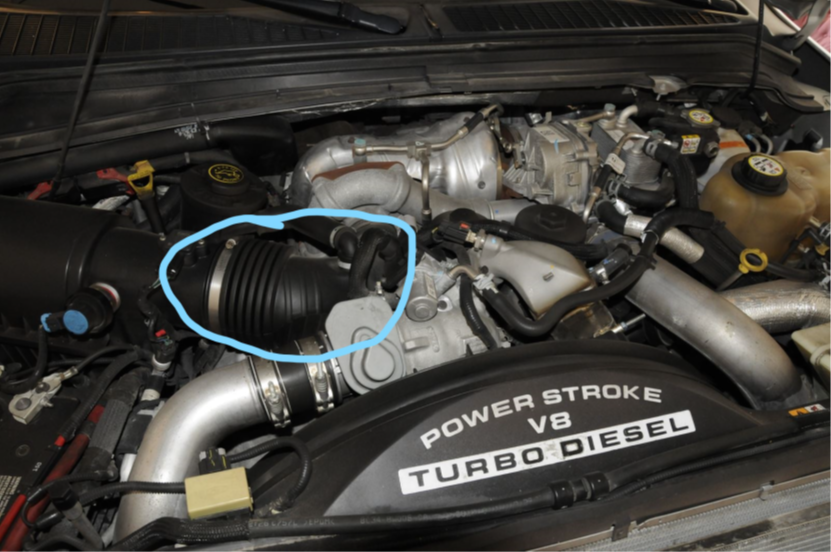

• Locate the 6.4 air intake system (Pictured Below)• Remove air intake using the 8mm socket, set aside.

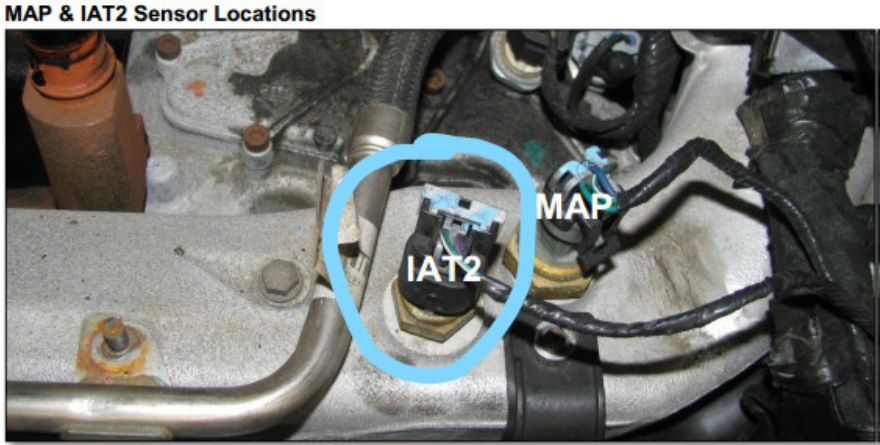

• Locate the appropriate sensor (pictured below) the two-wire IAT sensor located below where the intake was, along the passenger side intake runner near the MAP sensor.

• Unplug the sensor and cut back approximately 1.5” of the protective wire sheathing. (if needed)

• Tap the SOTF switch into the Purple and Turquoise/White wires (polarity does not matter).

• Leave the sensor UNPLUGGED from the factory location. Tape the end of the plug if desired.

• Ensure that a proper SOTF profile/calibration is installed. If a SOTF profile/calibration is installed without a switch, the ECM will default to position 1 (lowest power).

• Position 1. 1000RPM High Idle ( DO NOT DRIVE IN POS 1!!)

• Position 2. Stock/Lowest Power Setting.

• Position 3. Tow Setting ( Depending On Tune)

• Position 4. Street Setting ( Depending On Tune)

• Position 5. Highest Power/Race Setting.
